Shop

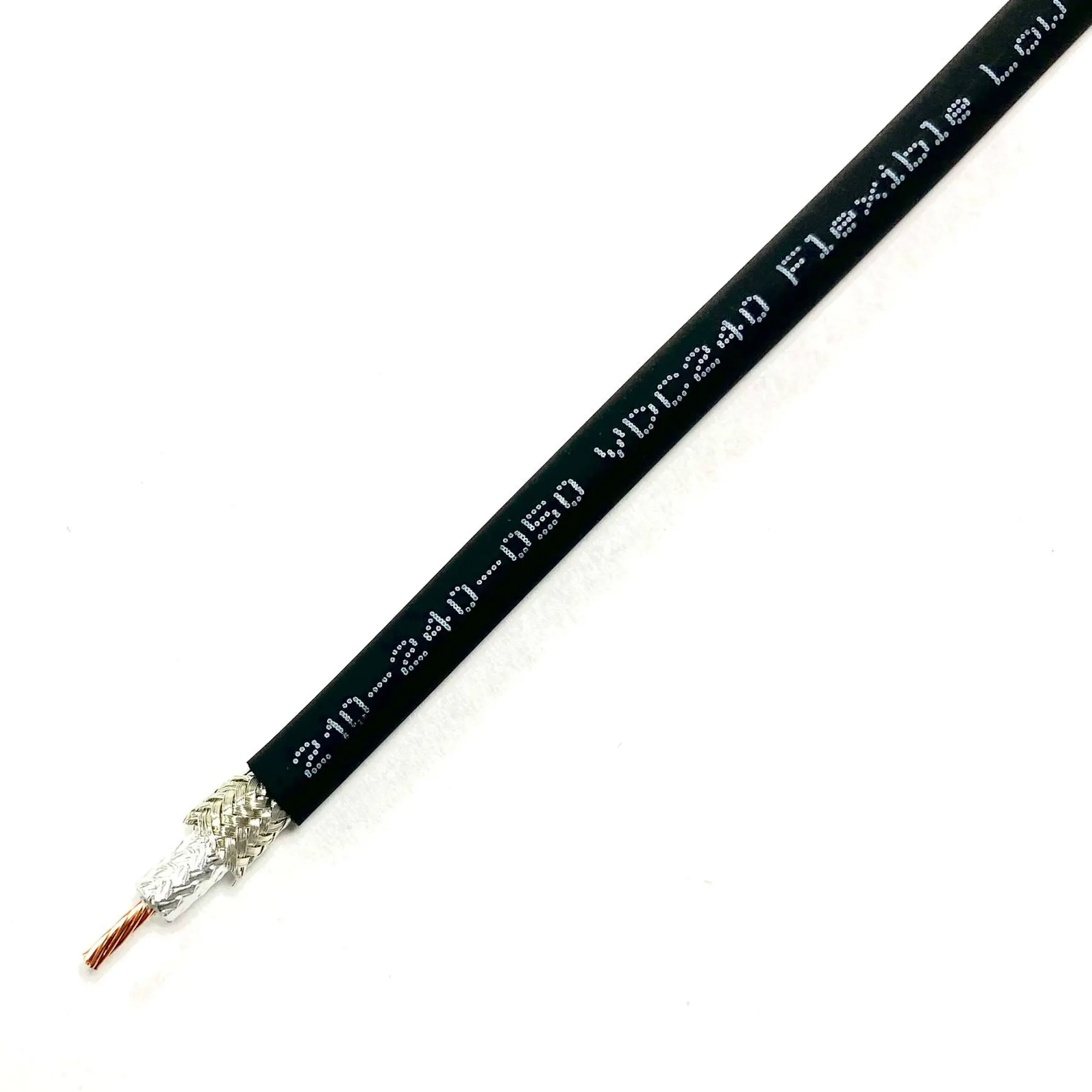

VDC240 Contractor Flexible Low Loss 50 Ohm Coax, 500m reel

Name: VDC240 Contractor Flexible Low Loss 50 Ohm Coax, 500m reel
Brand: VDC
SKU: 210-240-050-500
Price: 994.25 GBP
Availability: InStock

210-240-050-500

RATING

Product options

Part No. (SKU)	Unit of Sale	Stock count
210-240-050-500	500m reel	5
210-240-050	Per metre (10m+)	167

QUANTITY

Stock count: 5

PRICE (EX. VAT)

£994.25

210-240-050-500

RETAIL PRICES (EX. VAT)

1+

£994.25

5+

£869.12

13%

Product Information

VDC240 and VDC400 flexible low loss 50 Ohm coaxial cables feature a stranded centre conductor, foamed polyethylene dielectric and TPE (Thermoplastic Elastomer) outer jacket. The combination of a stranded conductor and TPE jacket results in a cable that is manageable for tactical and touring applications without compromising electrical performance.

Typical applications include antenna feeder cables for radio microphones, wireless comms and satellite applications.

3% discount for 500m reel

Conductor	Bare Copper
Stranding	7 x 0.485 mm
Diameter (mm)	1.46 ± 0.02
Dielectric	Foamed Polyethylene
Diameter (mm)	3.81 ± 0.15
Screen 1	Aluminium/polyester foil
Screen 2	Tinned copper braid, 92 ± 3 % coverage
Overall jacket	TPE (Thermoplastic Elastomer) Jet Black
Overall diameter (mm)	6.15 ± 0.15
Bend radius	11 x overall diameter
Operating temperature	-40 to +85 ⁰C

Impedance (Ohms)	50 ± 2
Capacitance (pF/m)	78
Conductor resistance (Ohm/km)	< 14.2
Velocity Ratio	84 %
Peak Power (kW)	5.6
VSWR (dB/100m):
1.0 GHz	<1.15
1.0-2.5 GHz	<1.20
2.5-3.5 GHz	<1.25
3.5-6.0 GHz	<1.30
Download Technical Specification for attenuation & peak power data
