The NAC3M-TRUE1-L powerCON TRUE1 is engineered for rugged performance in harsh environments. This locking mains connector provides a durable and secure alternative to traditional appliance couplers, delivering a dependable solution for safe power connections.
Featuring Connector with Breaking Capacity (CBC) technology, the NAC3M-TRUE1-L enables safe connection and disconnection under load or live conditions, making it the ideal choice for professional-grade applications where reliability and safety are critical.
| Question | Answer |
| What is the different between the -S and -L Version? | Both versions are fully certified according to EN IEC 60320-1, UL 60320-1 and CSA 22.2 No. 60320-1. The S-version is certified other Cables then the L-version, cables as follows:
|
| When is the IEC 60799 relevant? | This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. |
| Why is the bushing loose in one direction? | This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. |
| Product | |
| Title | NAC3M-TRUE1-L |
| Product family | powerCON® TRUE1 |
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 1 GΩ (after damp and heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | 16 A / 250 V AC according to EN IEC 60320-1 |
| Rating America | 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 |
| Mechanical | |
| Cable O.D. | 10 - 16 mm (0.39 – 0.63 inches) |
| Lifetime | > 5000 mating cycles |
| Wiresize (mm²) | 2.5 mm² |
| Wiresize (AWG) | 14 - 12 AWG |
| Material | |
| Contact plating | 2 μm Ag |
| Locking element | Polyamide (PA 66) |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA 66) |
| Shell | Polyamide (PA 66) |
| Strain relief | Polyketon |
| Environmental | |
| Flammability | UL 94 V-0 |

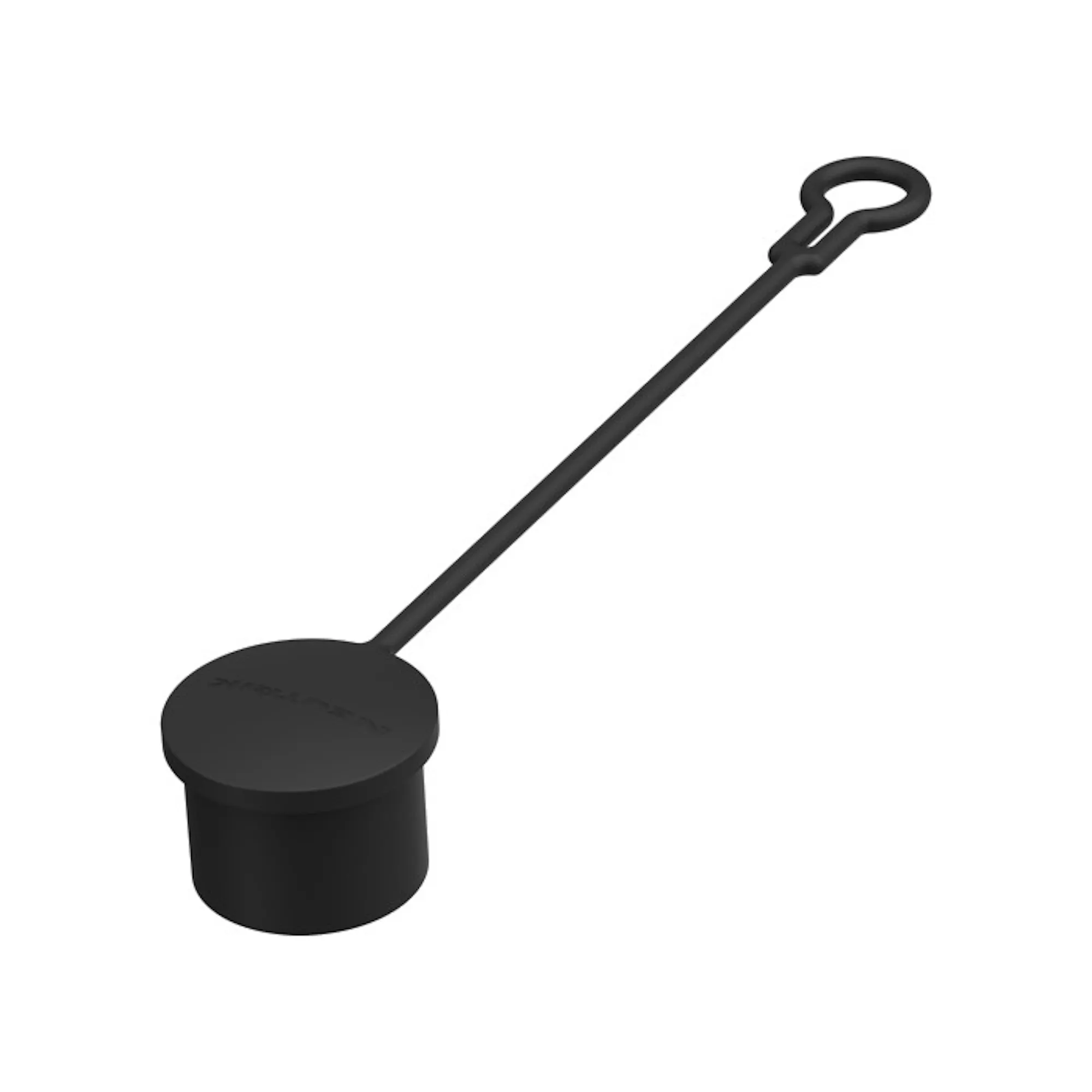

| Protection class | IP 65 / 67 (mated or with closed caps) |
| UV resistance | F1 rated material withstands UV exposure |
| Temperature range | -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1 |
