Shop

Mains

Neutrik Powercon

16A True 1 Powercon

Neutrik NAC3F-TRUE1-L

311-721-000
RATING
QUANTITY
Stock count: 530
PRICE (EX. VAT)
£6.31
311-721-000
RETAIL PRICES (EX. VAT)
1+
£6.31
10+
£5.36
15%
Product Information

The NAC3F-TRUE1-L PowerCON TRUE1 Connector is a robust, locking mains connector designed for tough, demanding applications. Perfect for situations where a secure and durable power connection is crucial, it features a locking mechanism to ensure safe, reliable operation in challenging environments. Equipped with breaking capacity (CBC), the PowerCON TRUE1 can be connected or disconnected under load or while live, providing added flexibility and safety for professional use.

  • Heavy-duty, sealed power connector designed for harsh and demanding environments
  • Constructed from high-impact, UV-resistant materials for durability
  • Lockable single-phase connector for added safety
  • Exceptionally robust and reliable, with ENEC and VDE certification to IEC 60320-1 and EN IEC 60320-1 standards
  • UL and CSA certified to UL 60320-1 and CSA 22.2 No. 60320-1
  • Rated IP65 and IP67 (when mated or with closed cap) for excellent protection against dust and water
  • True mains connector with breaking capacity (CBC), enabling safe connection and disconnection under load
  • User-friendly and secure twist-lock system for easy operation
  • Features unique NEUTRIK locking bushing and strain relief, supporting cable diameters from 10 mm to 16 mm (0.39 – 0.63 inches)





FAQ
Technical Information
Downloads
Question  Answer
What is the different between the -S and -L Version? Both versions are fully certified according to EN IEC 60320-1, UL 60320-1 and CSA 22.2 No. 60320-1.
The S-version is certified other Cables then the L-version, cables as follows:
  • S-Version: H05VV-F 3G1.5mm², H05VV-F 3G2.5mm², H07RN-F 3G 1.5 mm² and SJOOW 14/3 AWG.
  • L-Version: H07RN-F 3G 2.5 mm², SOOW 16/3, SJOOW 16/3 and SJOOW 14/3
When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections.
Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required.
Product
Title NAC3F-TRUE1-L
Product Family powerCON® TRUE1
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp and heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe 16 A / 250 V AC according to EN IEC 60320-1
Rating America 20 A / 250 V AC according to UL 60320-1
20 A / 250 V AC according to CSA C22.2 No. 60320-1
Mechanical
Cable O.D. 10 - 16 mm (0.39 – 0.63 inches)
Lifetime > 5000 mating cycles
Wiresize (mm²) 2.5 mm²
Wiresize (AWG) 14 - 12 AWG
Material
Contact plating 2 μm Ag
Locking element Polyamide (PA 66)
Contacts Copper Alloy
Insert Polyamide (PA 66)
Shell Polyamide (PA 66)
Strain relief Polyketon
Environmental
Flammability UL 94 V-0
Protection class IP 65 / 67 (mated or with closed caps)
UV resistance F1 rated material withstands UV exposure
Temperature range -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
Related products
Neutrik HTLACB
311-734-000
From
£15.74
+VAT
1+
£15.74
10+
£15.74
Neutrik HTLACA
311-732-000
From
£21.48
+VAT
1+
£21.48
10+
£21.48

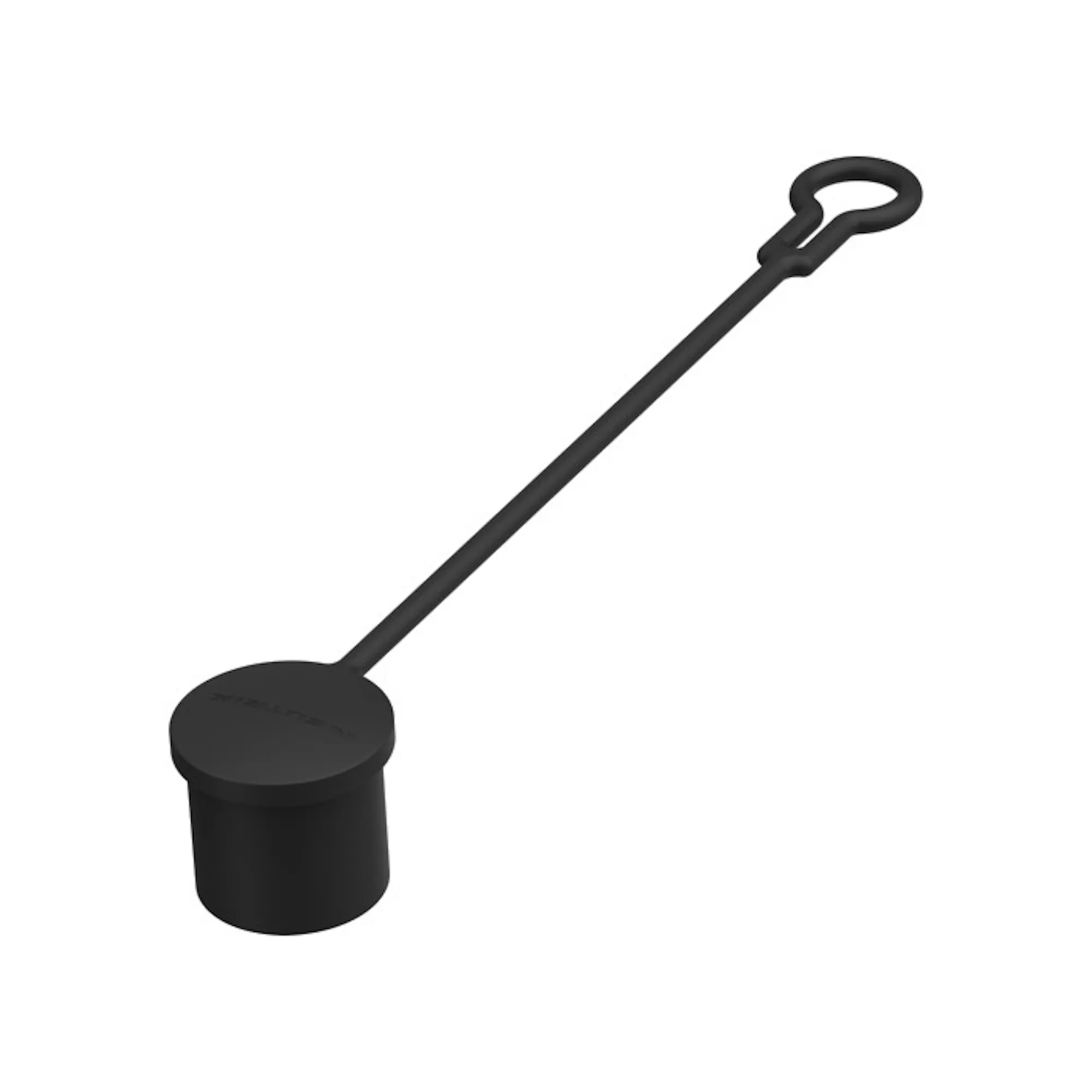

Neutrik SCNAC-FX protective cover
