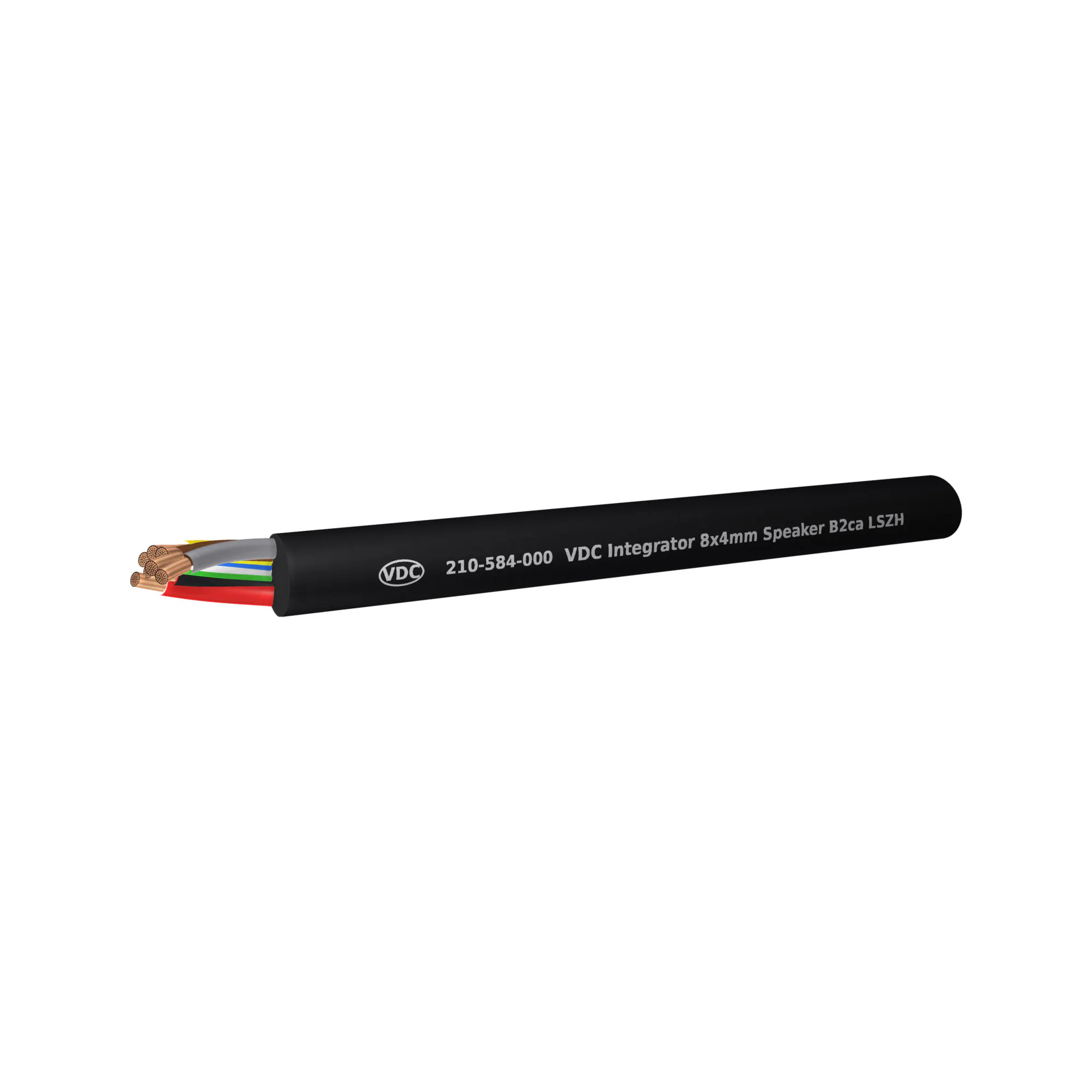

VDC Integrator Series 8x4mm Speaker B2ca LSZH 500m Reel

An eight core speaker cable with 4mm² conductors, rated B2ca-s1a,d0,a1 for fixed installation. The eight cores carry up to four speaker circuits in a single cable, and the larger cross section suits longer runs and lower impedance loads where conductor resistance forms a significant proportion of the total load. Conductors are stranded bare copper to IEC 60228 Class 5, laid up under a PET wrapping tape with a fully extruded LSZH outer jacket. Core insulation is also LSZH, with all eight cores individually colour identified. Overall diameter is 14.3mm.

Features

• CPR classification B2ca-s1a,d0,a1
• Eight cores, 4mm² stranded bare copper to IEC 60228 Class 5
• LSZH core insulation and fully extruded LSZH outer jacket
• PET wrapping tape over the laid up cores
• Core identification: red, black, green, white, blue, yellow, brown and grey
• 14.3mm overall diameter
• 600V rated, operating temperature -30°C to +70°C
• UV resistant to ISO 4892-3
• Fire testing: EN 60332-1-2, EN 50399, EN 61034-2, IEC 60754-1 and IEC 60754-2
• RoHS 3 (EU 2015/863) and REACH compliant
