VDC Integrator Series 8x2.5mm Speaker B2ca LSZH 100m Reel

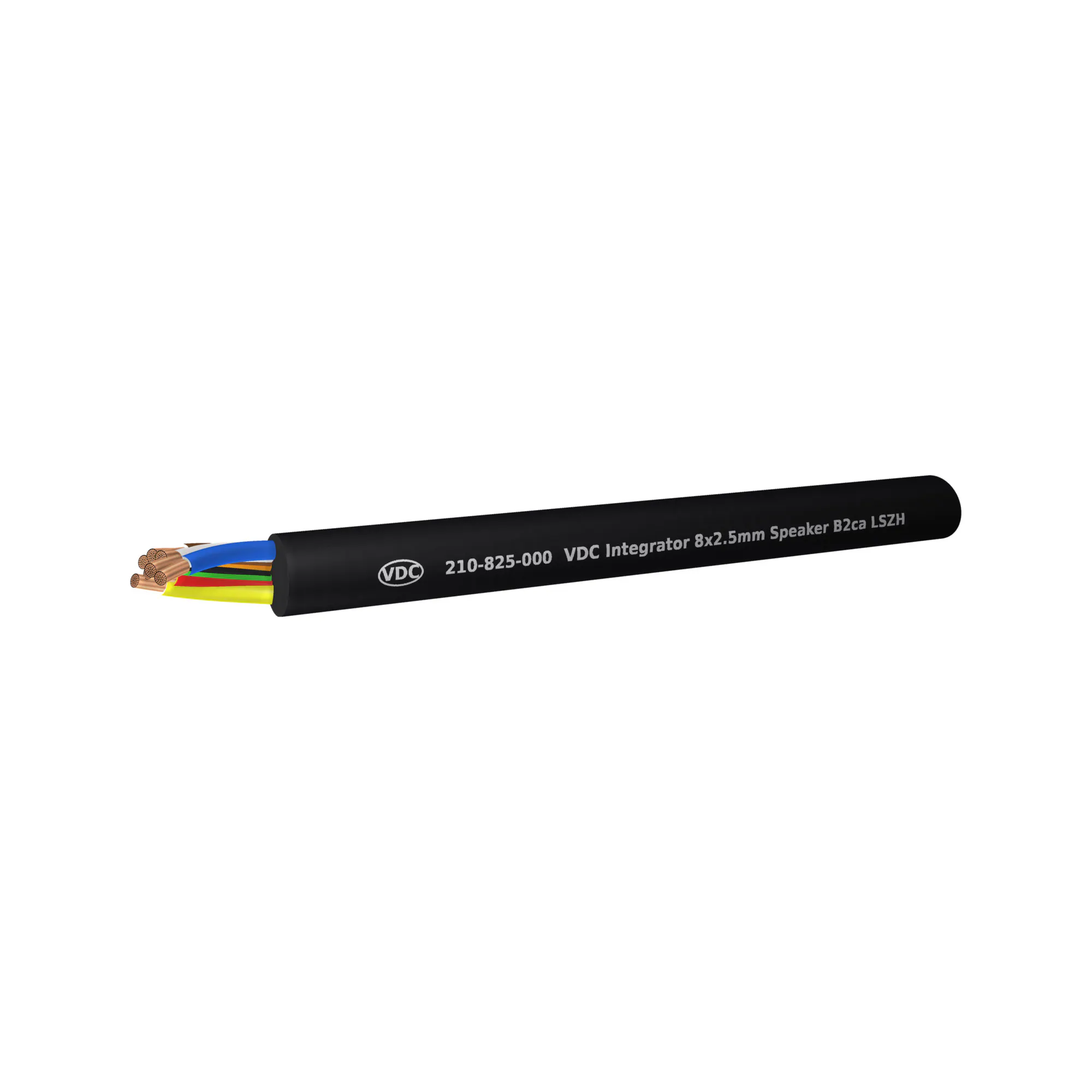

An eight core version of the Integrator Series 2.5mm² speaker cable, rated B2ca-s1a,d0,a1 for fixed installation. The eight cores carry up to four speaker circuits in a single cable, reducing cable count in multi-zone systems, distributed audio and rack to speaker runs where several circuits follow the same route. Conductors are stranded bare copper to IEC 60228 Class 5 with a maximum resistance of 7.98 Ohms/km per core. Both the core insulation and the fully extruded outer jacket are LSZH. Cores are individually identified by colour and overall diameter is 13.11mm.

Features

• CPR classification B2ca-s1a,d0,a1
• Eight cores, 2.5mm² stranded bare copper to IEC 60228 Class 5
• 50 x 0.24mm conductor construction
• Maximum conductor DC resistance 7.98 Ohms/km
• LSZH core insulation and fully extruded LSZH outer jacket
• Core identification: yellow, red, green, black, orange, brown, white and blue
• 13.11mm overall diameter
• 600V rated, operating temperature -30°C to +70°C
• UV resistant to ISO 4892-3
• Fire testing: EN 60332-1-2, EN 50399, EN 61034-2, IEC 60754-1 and IEC 60754-2
• RoHS 3 (EU 2015/863) and REACH compliant
