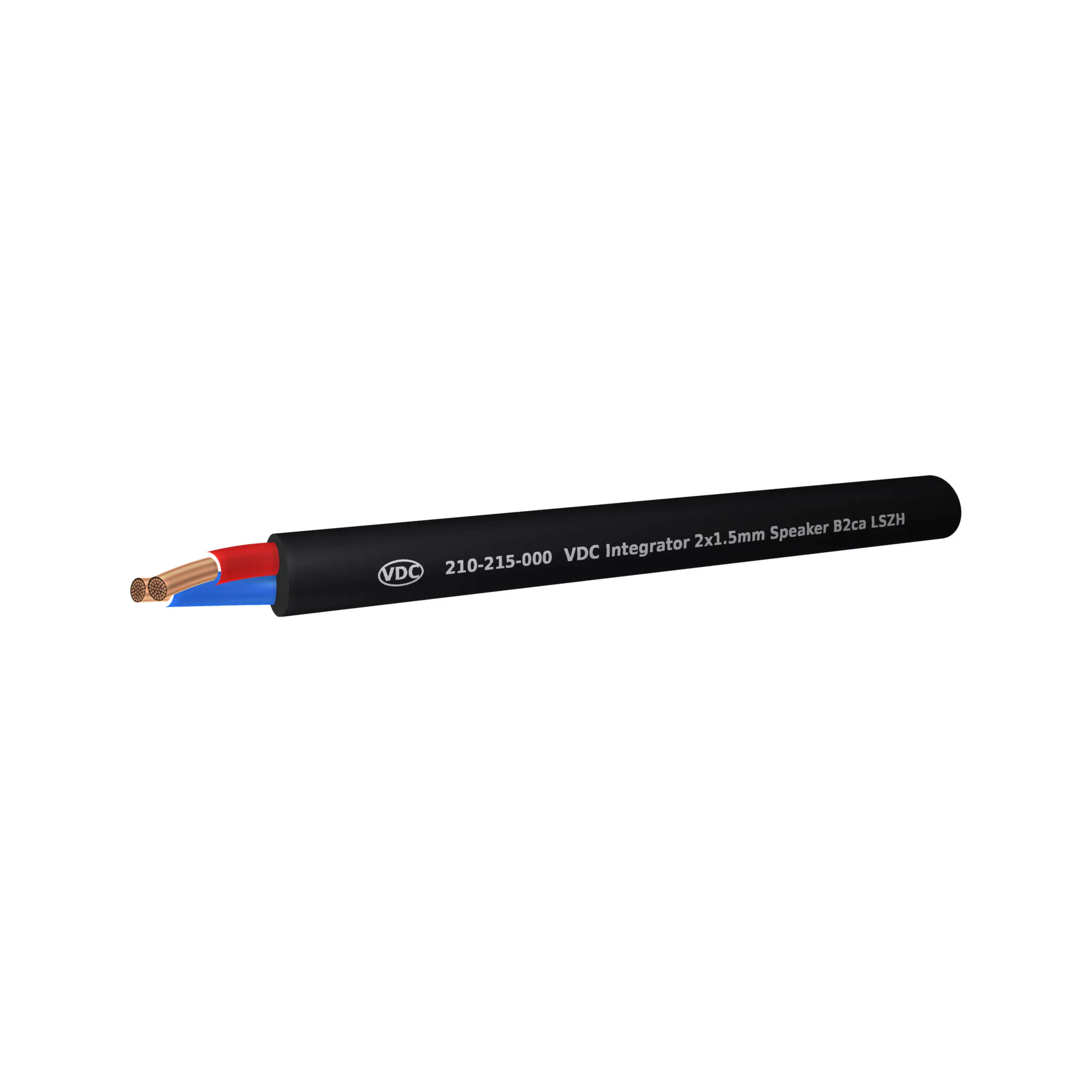

VDC Integrator Series 2x1.5mm Speaker B2ca LSZH 500m Reel

The Integrator Series 2 x 1.5mm speaker cable brings B2ca fire performance to fixed audio installations without the handling penalty usually attached to it. Conductors are stranded bare copper to IEC 60228 Class 5, the flexible class, giving genuinely easy routing through containment and around tight bends rather than the stiff, unwieldy feel common to higher CPR classifications. LSZH is used for both the core insulation and a fully extruded outer jacket, so the entire construction is low smoke and halogen free. At 6.5mm overall diameter with a maximum conductor resistance of 13.3 Ohms/km, it keeps power losses low over long runs while remaining practical to install in congested containment and ceiling voids.

Features

• CPR classification B2ca-s1a,d0,a1, the highest practical class for fixed installation cable
• 1.5mm² stranded bare copper conductors to IEC 60228 Class 5 for maximum flexibility
• 30 x 0.24mm conductor construction
• LSZH core insulation and fully extruded LSZH outer jacket
• Blue and red core identification
• Slim 6.5mm overall diameter for easier routing and higher containment fill
• Maximum conductor DC resistance 13.3 Ohms/km for low power loss over distance
• 600V rated, operating temperature -30°C to +70°C
• UV resistant to ISO 4892-3
• Full fire test suite: EN 60332-1-2, EN 50399, EN 61034-2, IEC 60754-1 and IEC 60754-2
• RoHS 3 (EU 2015/863) and REACH compliant
