Van Damme Cable

Tactical Network Cables

TourCat Cat 6A Data Signal Power Hybrid Multicore

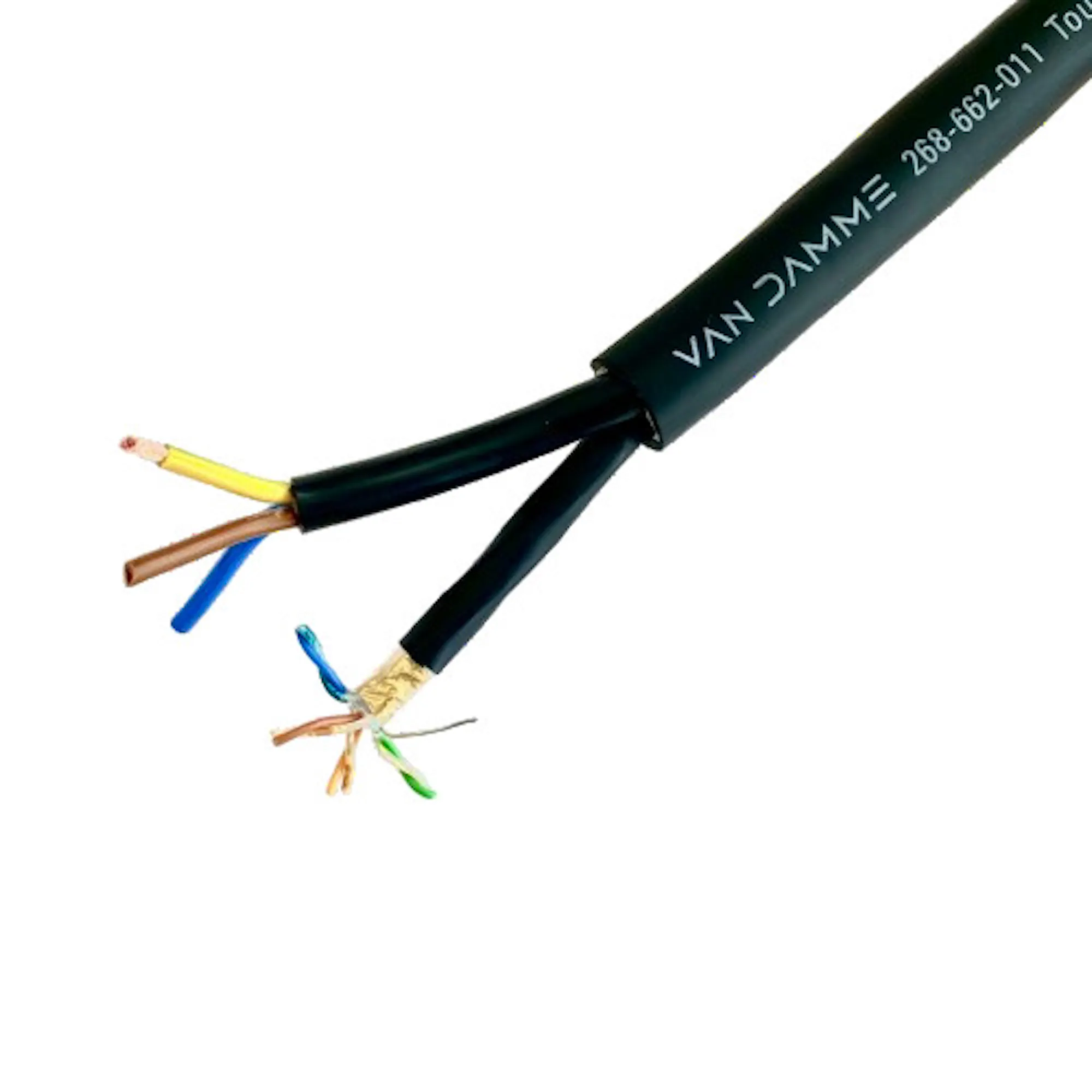

Van Damme Tourcat Hybrid 1 x Cat 6A / 1 x 3x2.5mm Power & Data Multicore

Name: Van Damme Tourcat Hybrid 1 x Cat 6A / 1 x 3x2.5mm Power & Data Multicore
Brand: Van Damme
SKU: 268-662-011
Price: 17.55 GBP
Availability: InStock

268-662-011

RATING

QUANTITY

Stock count: 4449

PRICE (EX. VAT)

£17.55

268-662-011

RETAIL PRICES (EX. VAT)

1m+

£17.55

10m+

£14.63

17%

Product Information

The Van Damme Tourcat Hybrid 1 x Cat 6A / 1 x 3x2.5mm Power & Data Multicore combines a Cat 6A foil-screened data element with a 2.5mm² jacketed power cable in a single flexible multicore, specified for dynamic use. Designed as an elegant, one-cable solution for integrated data and power distribution, this Tour Grade construction eliminates the need to run separate data and power runs, ideal for LED wall installations and any application where Cat 6A bandwidth is required alongside a power feed.

This product features 1 x Cat 6A foil-screened element and 1 x 3x2.5mm² HO5VV-F compliant power cable. The Cat 6A element delivers rapid, high-bandwidth data transfer via ultra-pure oxygen free copper conductors with skin-foam-skin polyethylene dielectric and aluminium/polyester foil screen at greater than 115% coverage. The power element is rated at 20A and is compliant with the HO5VV-F harmonised standard.

Recommended RJ45 connectors and tooling:

351-000-002 VDC Cat 6A Shielded RJ45
351-900-000 Crimp tool for Cat 6A STP RJ45
Neutrik Cat 6A Ethercon range

Applications

Power and Cat 6A data for LED walls
Any application requiring Cat 6A data with an integrated power feed

RoHS 2011/65/EU — Restriction of Hazardous Substances

REACH — Registration, Evaluation, Authorisation and Restriction of Chemicals


Cat 6A Element – Conductor	1 x 0.574mm bare oxygen free copper
Conductor size	1 x 0.574mm, 0.259mm², AWG 23
Dielectric	Skin-foam-skin polyethylene
Dielectric diameter	1.12 ± 0.02mm
Colour code	Pair 1: White/Blue–Blue, Pair 2: White/Orange–Orange, Pair 3: White/Green–Green, Pair 4: White/Brown–Brown
Cross member	Polyethylene
Screen	Aluminium/Polyester foil >115% coverage
Cat 6A element jacket	Flexible PVC
Cat 6A element OD	7.30 ± 0.20mm
Power element type	PVC insulated – HO5VV-F
Power conductor size	2.5mm², 20A
Power element OD	7.80mm
Power element bend radius	10 x overall diameter
Overall jacket	Flexible PVC composite, Jet Black RAL 9005
Separator	Fleece tape
Overall diameter	17.2mm ± 0.3mm
Overall bend radius	15 x overall diameter
Operating temperature
